AXR C10.6

E-MTB Full Carbon
7999
Promo 7999 7999
+
+
+
+
+

Brakes

Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm

Frame

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

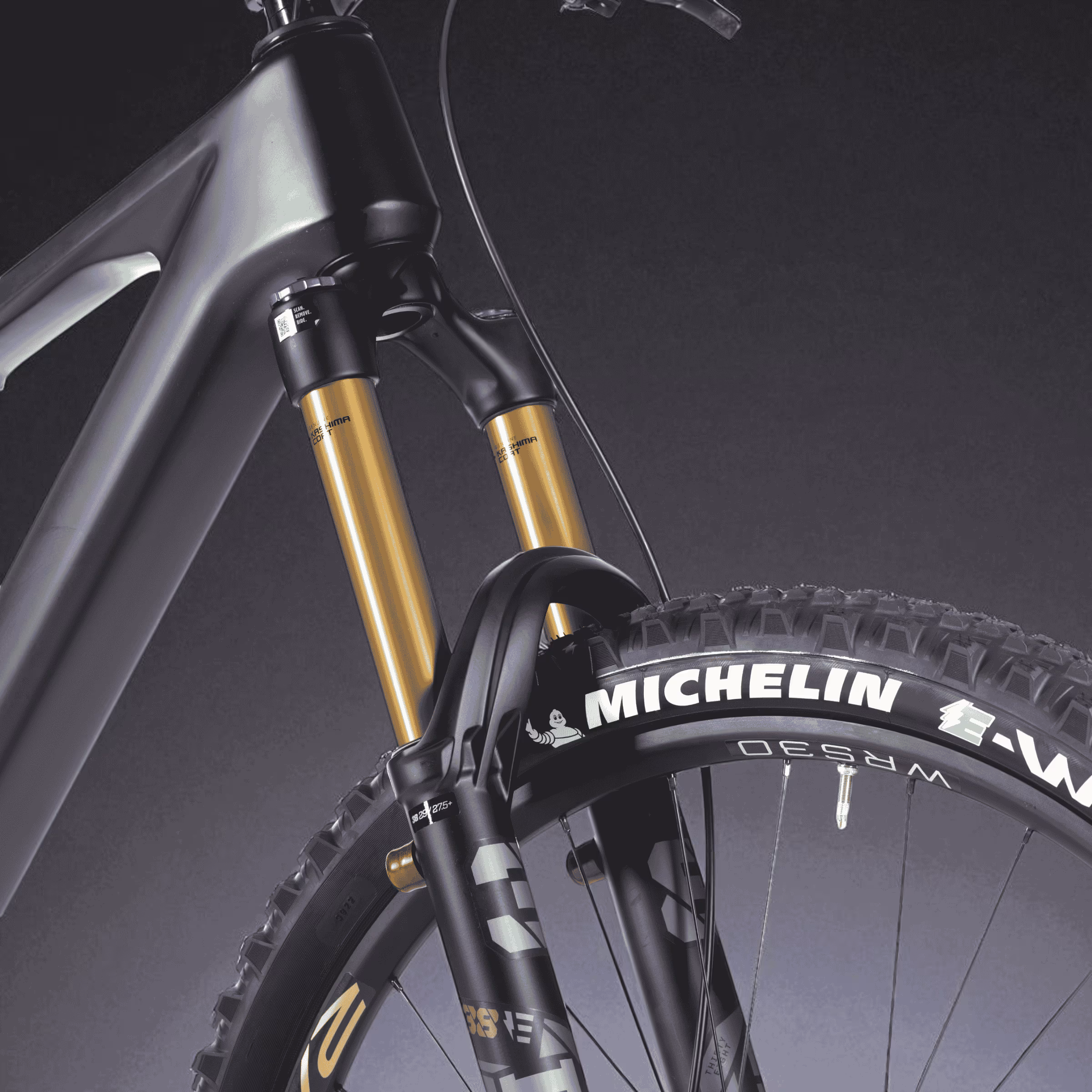

Fork

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

Rear Shock

Fox Float X2 Factory,EVOL, LSR, HSR, 2 Pos-Lever, 230x65

Rear Derailleur

Shimano XT RD-M8250 SGS Di2, 12s

Wheels

Radiale WX30, Ratchet 36T

Frame

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

Fork

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

Groupset

Cockpit

Engineering for maximum performance

Frame

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

Fork

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

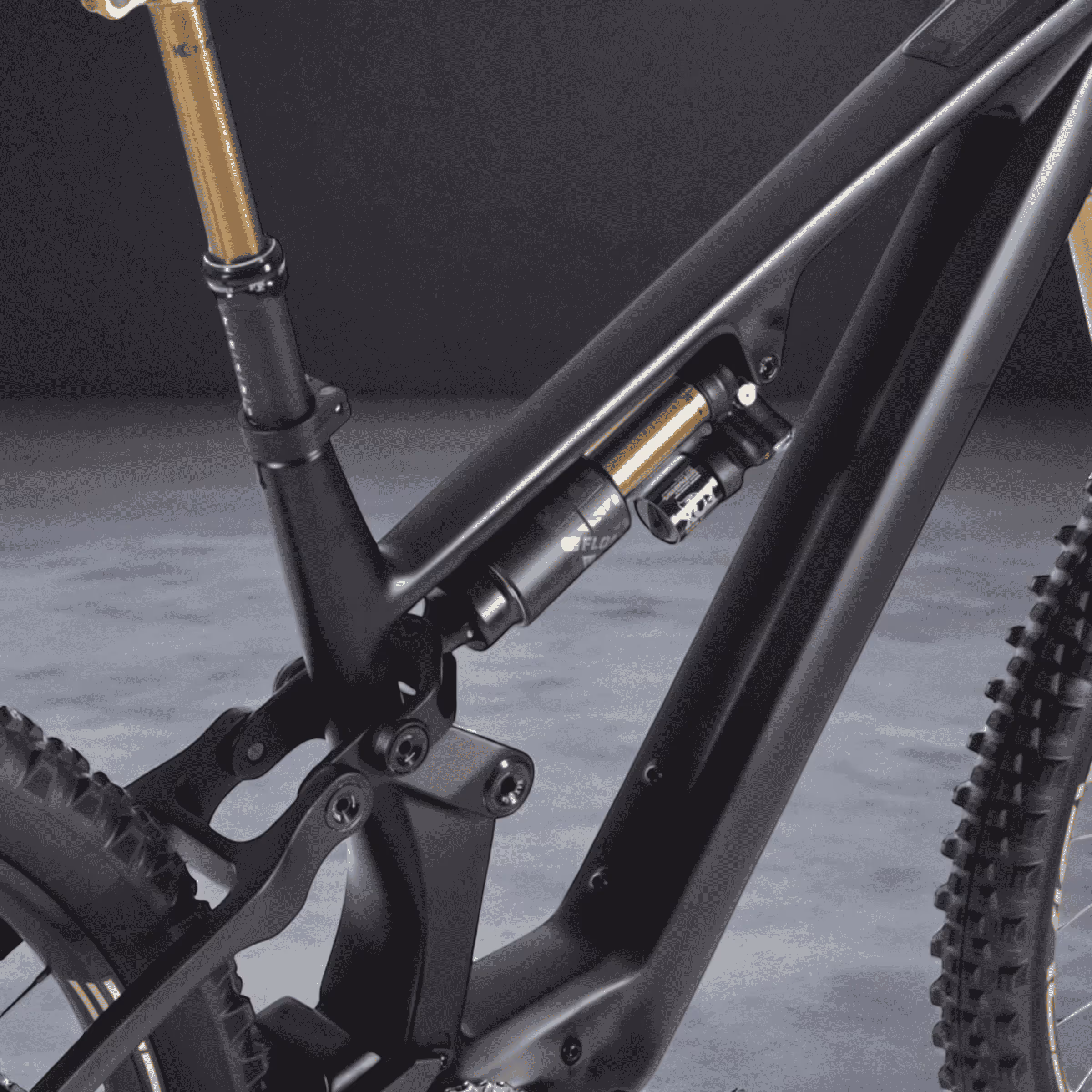

Rear Shock

Fox Float X2 Factory,EVOL, LSR, HSR, 2 Pos-Lever, 230x65

Rear Derailleur

Shimano XT RD-M8250 SGS Di2, 12s

Brakes

Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm

Engineered for speed & endurance

Frame

Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger

Fork

Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm

Wheels

Radiale WX30, Ratchet 36T

Groupset

Cockpit

Mechanical Specifications

Component
Value
Frame
Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger
Fork
Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm
Rear Shock
Fox Float X2 Factory,EVOL, LSR, HSR, 2 Pos-Lever, 230x65
Headset
FSA CRII Dual, 1.5”, Internal routing
Crankset
FSA CK320, 34T MegaTooth
Rear Derailleur
Shimano XT RD-M8250 SGS Di2, 12s
Front Derailleur
Shifters Levers
Shimano XT SW-M8250 Di2, 12s
Brakes
Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm
Cassette
Shimano CS-M8200, 12s, 10/51
Freewheel
Pedals
Alu MTB Full +
Chains
Front hub
Rear hub
Rims
Wheels
Radiale WX30, Ratchet 36T
Cockpit
Stem
Alu, Barbore 35 mm, Extension S-M frame 35 mm L-XL 50 mm
Handlebar
Alu, 780 mm, Barbore 35 mm, Rise 15 mm
Seatpost
Fox Transfer Factory Kashima, Diameter, 31.6 mm, remote
Saddle
Selle Royal SRX
Tyres
Michelin e-Wild Front&Rear Competition Line, 29"x2.60", Tubeless ready
Mudguards
Chaincover
Carriers
External lights
Weight
22.4kg
Size
40 - 44 - 48
Wheel diameter [inch]
29’’
Gear number
12
Battery
Avinox 800 Wh (Fixed) , weight 3.74 kg

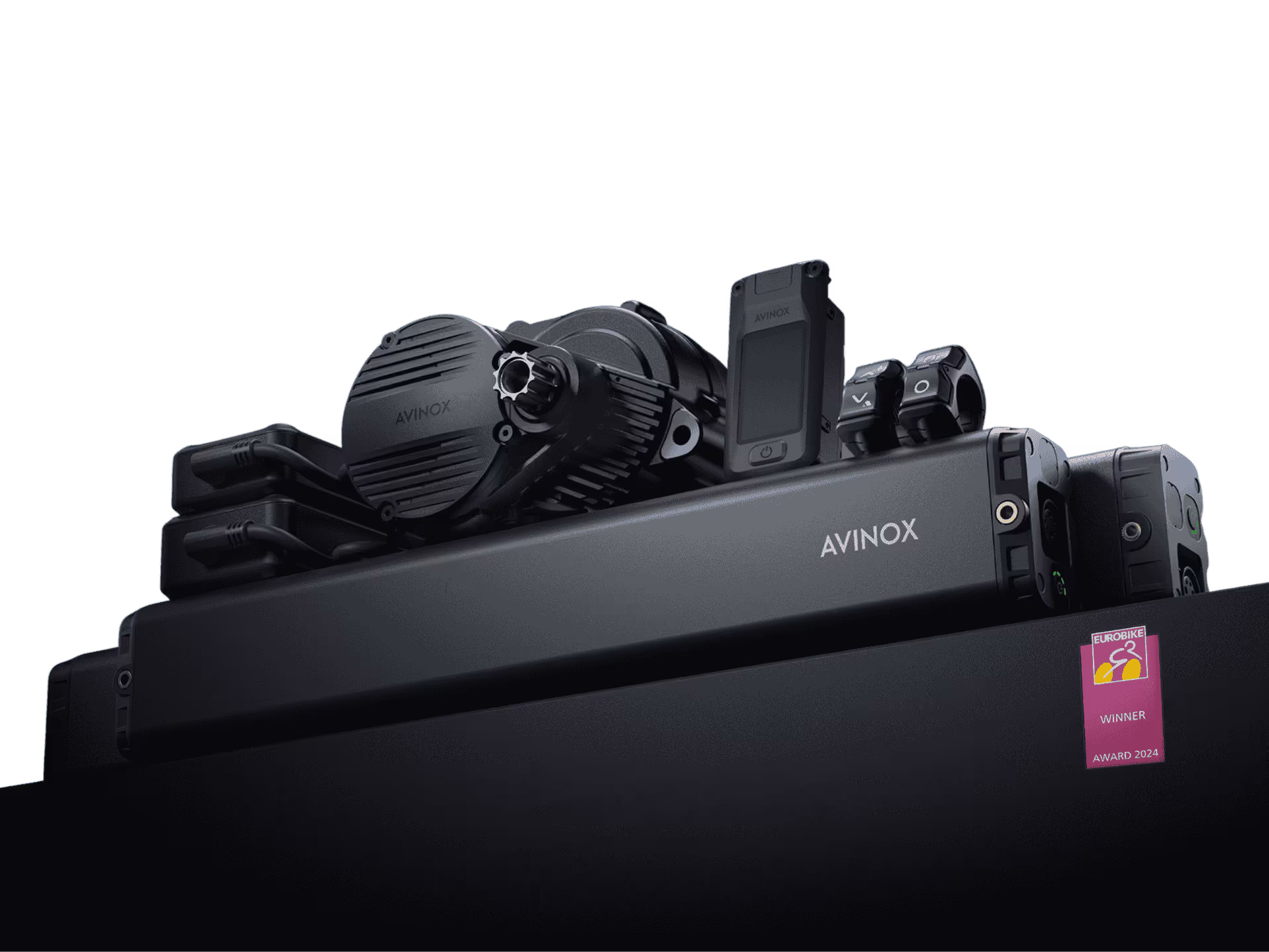

Electric specifications

Battery
Avinox 800 Wh (Fixed) , weight 3.74 kg

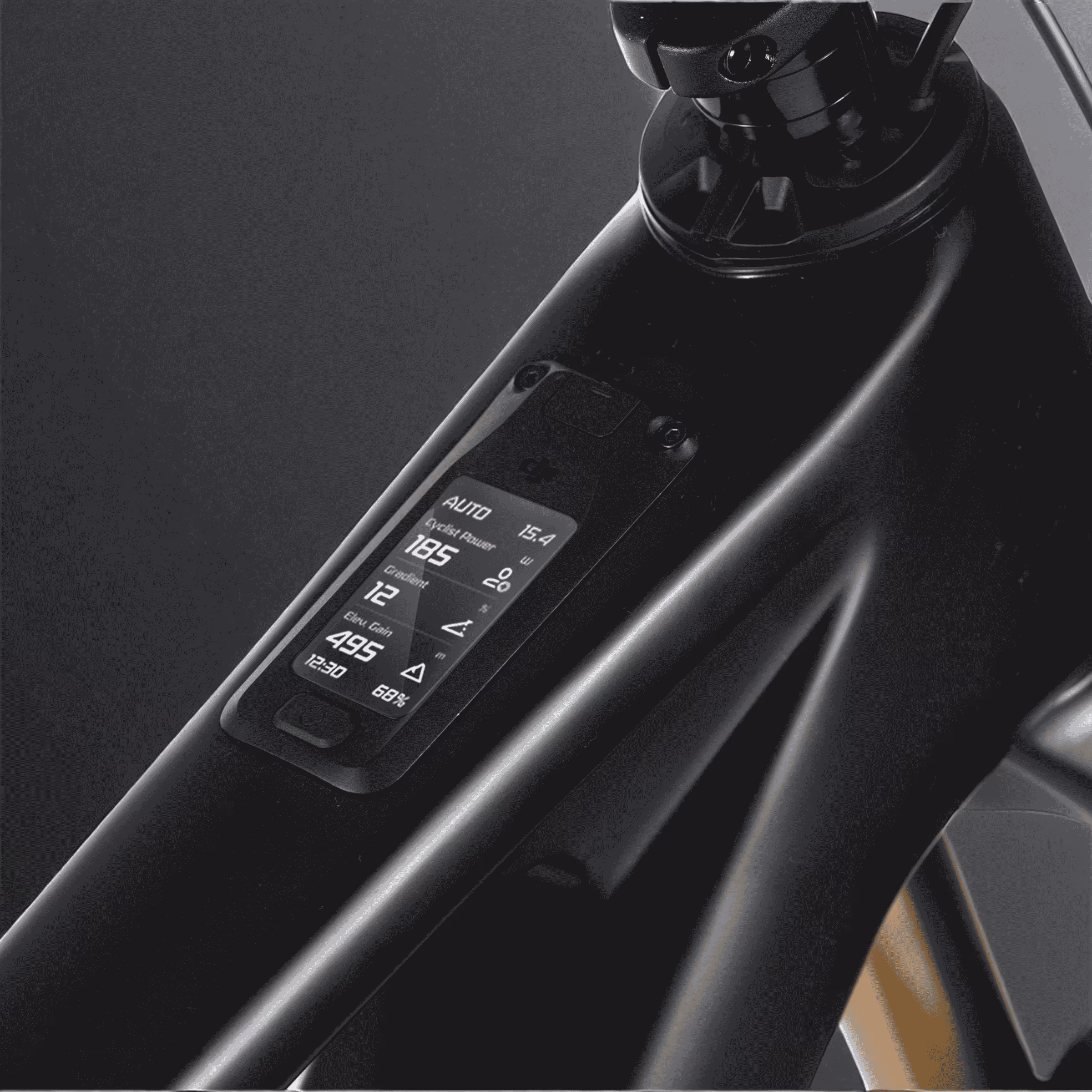

Display
Avinox DP100
ENGINE
Avinox M1 2,52 kg

Max Power & Torque

1000W, 120 Nm

Charger

12 A

2.5 hours

Autonomy

Max Assistance

Auto / Eco / Trail / Turbo / Boost

Extras

Max Velocity

25 km/h

Electric specifications

Battery
Avinox 800 Wh (Fixed) , weight 3.74 kg
Display
Avinox DP100
ENGINE
Avinox M1 2,52 kg
maximum torque

Max Power

1000W, 120 Nm

Charger

12 A

2.5 hours

Autonomy

Max Assistance

Auto / Eco / Trail / Turbo / Boost

Extras

Max Velocity

25 km/h

Product Specs

40 - 44 - 48
Sizes
BLACK/RED
Color

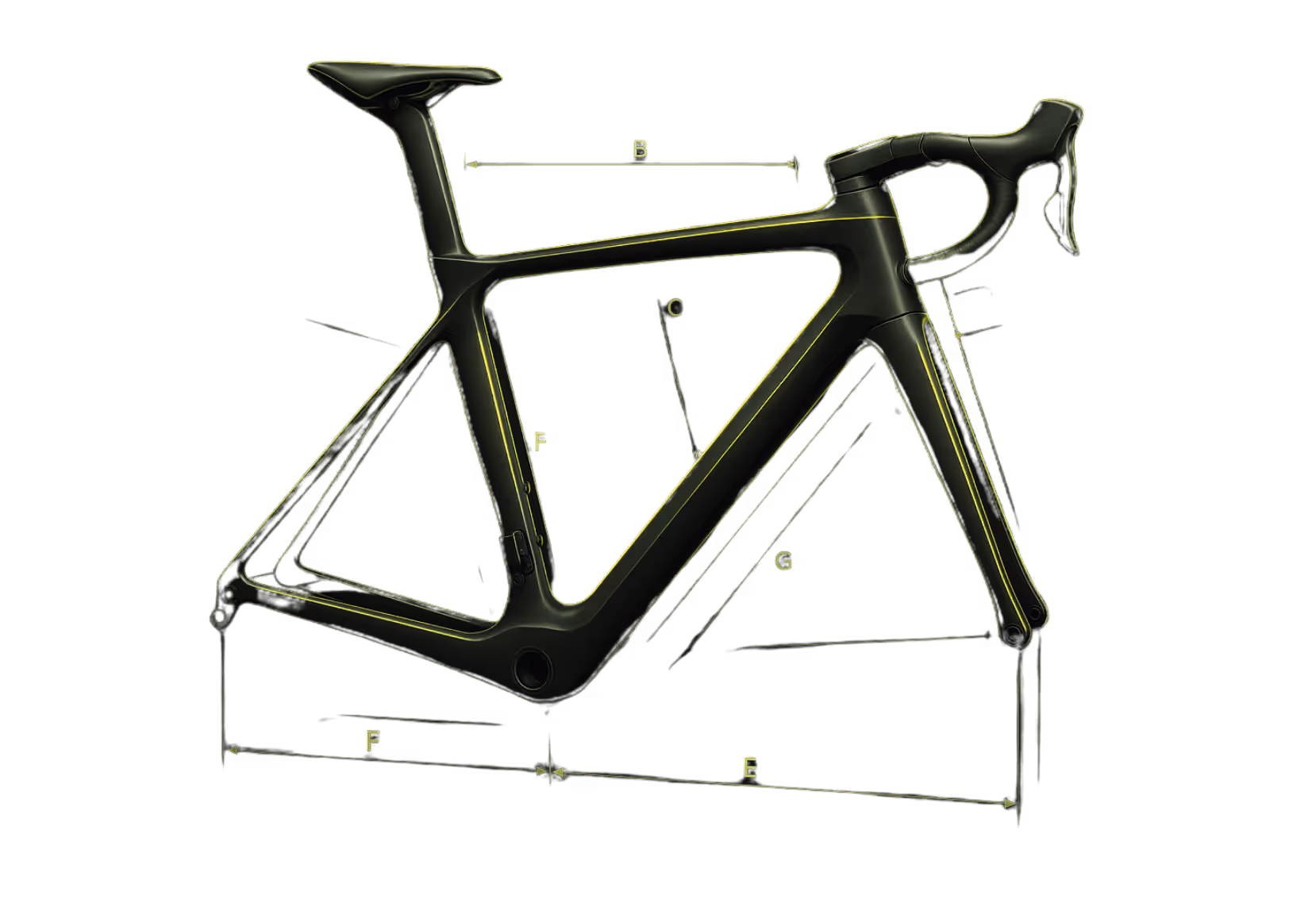

Geometry that wins

Our detailed geometry charts provide you with exact measurements and parameters crucial to performance. Understand how every angle and dimension contributes directly to speed, agility, and endurance.
DOWNLOAD FULL GEOMETRY
PDF HERE
DOWNLOAD UCI CERTIFICATE
